Gearbox 23

Strokesets and deflections

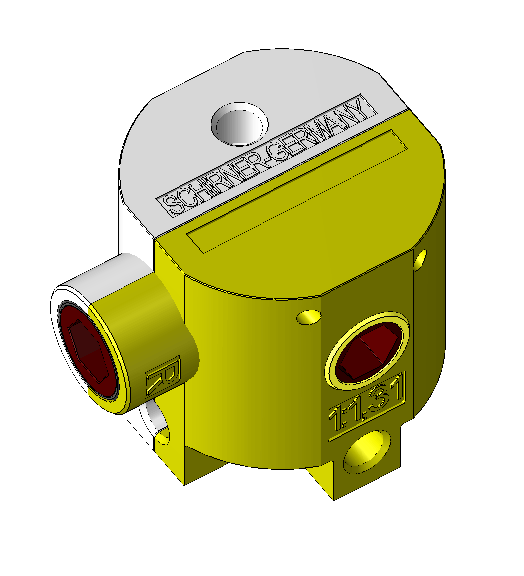

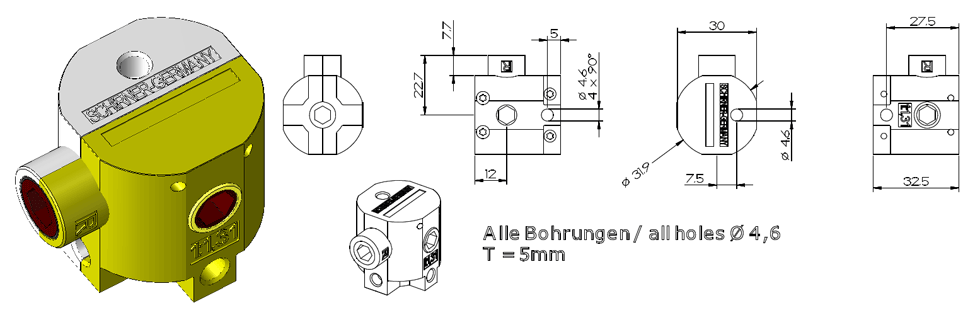

Deflection Gear Type 23

    • Hardened Bevelgears of 16MnCr5
    • Drive Hex 6
    • Up to 4 drives with Ratio 1:1,31
    • 2 drives also available with Ratio 1:1
    • IGUS® Glidebearings
    • Housing of zincdiecast
    • Versatile mounting possibilities
    • Retracted length costumerspecific
    • Stroke costumerspecific
    • Different spindles deliverable
    • Manual- und Motordrive possible
    • Static load min. 20 Nm
    • Max. torque 5 Nm
    • Anticorrosive available

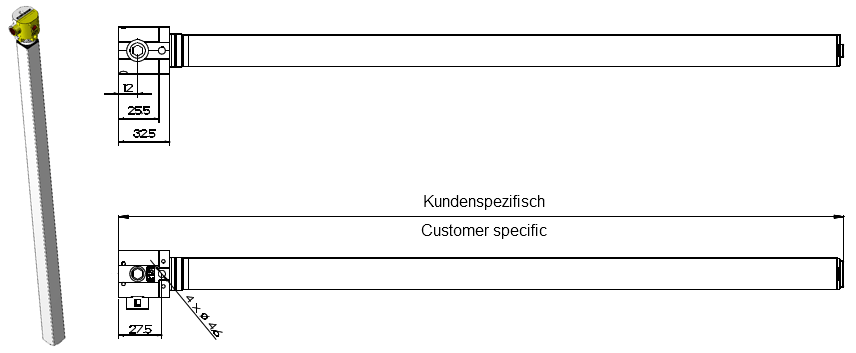

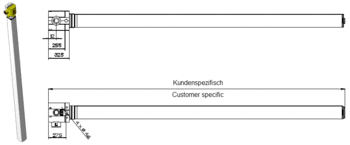

Strokeset Type 23

    • Hardened Bevelgears of 16MnCr5
    • Drive Hex 6
    • Up to 4 drives with Ratio 1:1,31
    • 2 drives also available with Ratio 1:1
    • IGUS® Glidebearings
    • Housing of zincdiecast
    • Versatile mounting possibilities
    • Retracted length costumerspecific
    • Stroke costumerspecific
    • Different spindles deliverable
    • Manual- und Motordrive possible
    • Static load min. 20 Nm
    • Max. torque 5 Nm
    • Anticorrosive available
