Gearbox 22

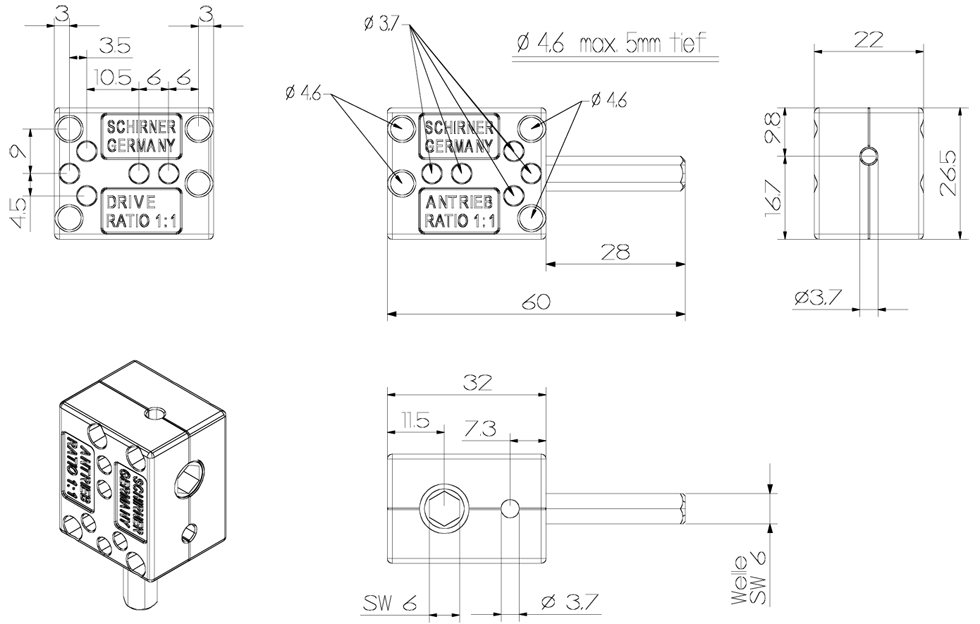

Deflection Gear Type 22

•

  • Hardened Bevelgears of 16MnCr5
  • Drive Hex 6
  • Ratio I = 1:1
  • IGUS® Glidebearings
  • Housing of zincdiecast
  • Versatile mounting possibilities
  • Retracted length costumerspecific
  • Stroke costumerspecific
  • Different spindles deliverable
  • Manual- und Motordrive possible
  • Static load min. 20 Nm
  • Max. torque 5 Nm
  • Anticorrosive available
•

---

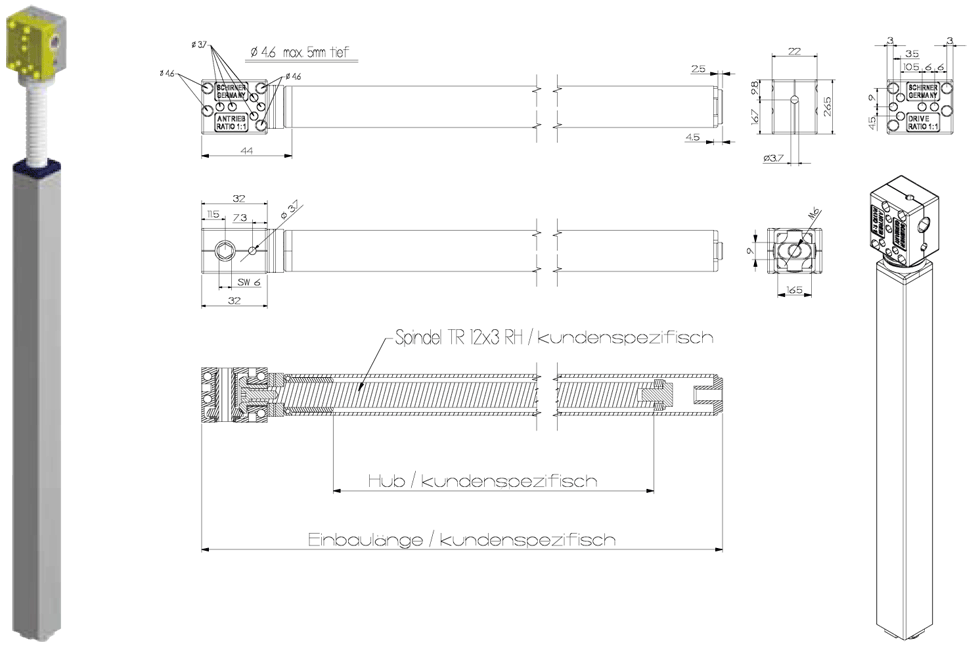

Strokeset Type 22

•

  • Hardened Bevelgears of 16MnCr5
  • Drive Hex 6
  • Ratio I = 1:1
  • IGUS® Glidebearings
  • Housing of zincdiecast
  • Versatile mounting possibilities
  • Retracted length costumerspecific
  • Stroke costumerspecific
  • Different spindles deliverable
  • Manual- und Motordrive possible
  • Static load min. 20 Nm
  • Max. torque 5 Nm
  • Anticorrosive available
•
